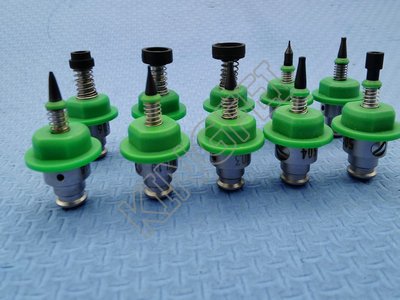

Original New JUKI Nozzle 500/501 / 502 / 503 / 504 / 505 / 506 / 507 / 508 / 509 / 510 / 511 / 512

NOZZLE ASSEMBLY 500 40011046
NOZZLE ASSEMBLY 501 40001339
NOZZLE ASSEMBLY 502 40001340
NOZZLE ASSEMBLY 503 40001341
NOZZLE ASSEMBLY 505 40001343
NOZZLE ASSEMBLY 504 40001342
NOZZLE ASSEMBLY 506 40001344
NOZZLE ASSEMBLY 507 40001345
NOZZLE ASSEMBLY 508 40001346
NOZZLE ASSEMBLY 510 E36157290A0
NOZZLE ASSEMBLY 511 E36167290A0
NOZZLE ASSEMBLY 500 CVS 40010999
NOZZLE ASSEMBLY 502 CVS 40010995
NOZZLE ASSEMBLY 503 CVS 40010996
NOZZLE ASSEMBLY 504 CVS 40010997
NOZZLE ASSEMBLY 505 CVS 40010998
NOZZLE ASSEMBLY 509 40025165

1 shape of nozzle
Select the nozzle from N0.501 through No.509, according to the shape and size of the components to be mounted.
Nozzles for laser recognition

2, Nozzle selection
The nozzle can be automatically recognized if you follow the explanation of "ATC Nozzle Selection." If you manually select the nozzle, select the nozzle with extreme care to prevent poor pick and placement of a component. The Nozzle Numbers for major types of components to placed be are shown in below figure. Howerver, to keep accuracy of pickup and placement, select the appropriate nozzle No. by refering to the minimum size of the suction area of each component.

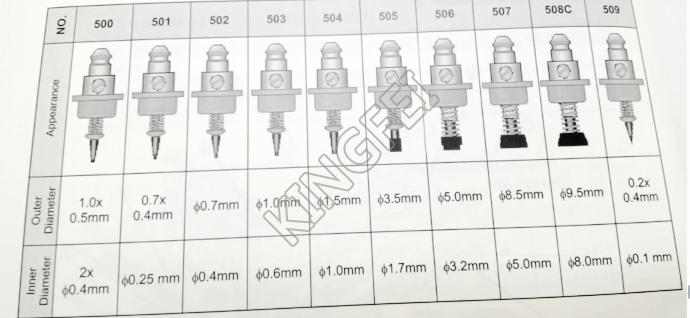

Nozzle and their pickable minimum component width
Nozzle No. Minimum component width(D) Major types of components
500 0.45 to 1.45 1005, 1608, SOT(Molded part: 1.6 x 0.8), 2012<note>
501 to 0.45 0603
502 0.45 to 0.75 1005
503 0.75 to 1.45 1608, SOT (Molded part: 1.6 x 0.8), 2012, SOT(Molded Part: 2.0 x 1.25)
504 1.1 to 2.5 2012, 3216, SOT ( Molded part: 2.0 x 1.25), SOT23
505 2.5 to 4 Aluminum Electolytic capacitor (small), tantalum capacitor, trimmer
506 4 to 7 Aluminum Electolytic capacitor (medium), SOP(narrow type), SOJ, Connector
507 7 to 10 Aluminum Electolytic capacitor (large), SOP(wide type), TSOP, QFP, PLCC, SOJ, Connector
508C 10 or more QFP, PLCC
509 0.2 0402
Note: Theta offset may be caused by pick surface shape of 2012R(depending on manufacturer, resistance value, etc.) For high-density mounting (Adjacent clearance of 0.3 mm or less of components 2012, use nozzle 504.
